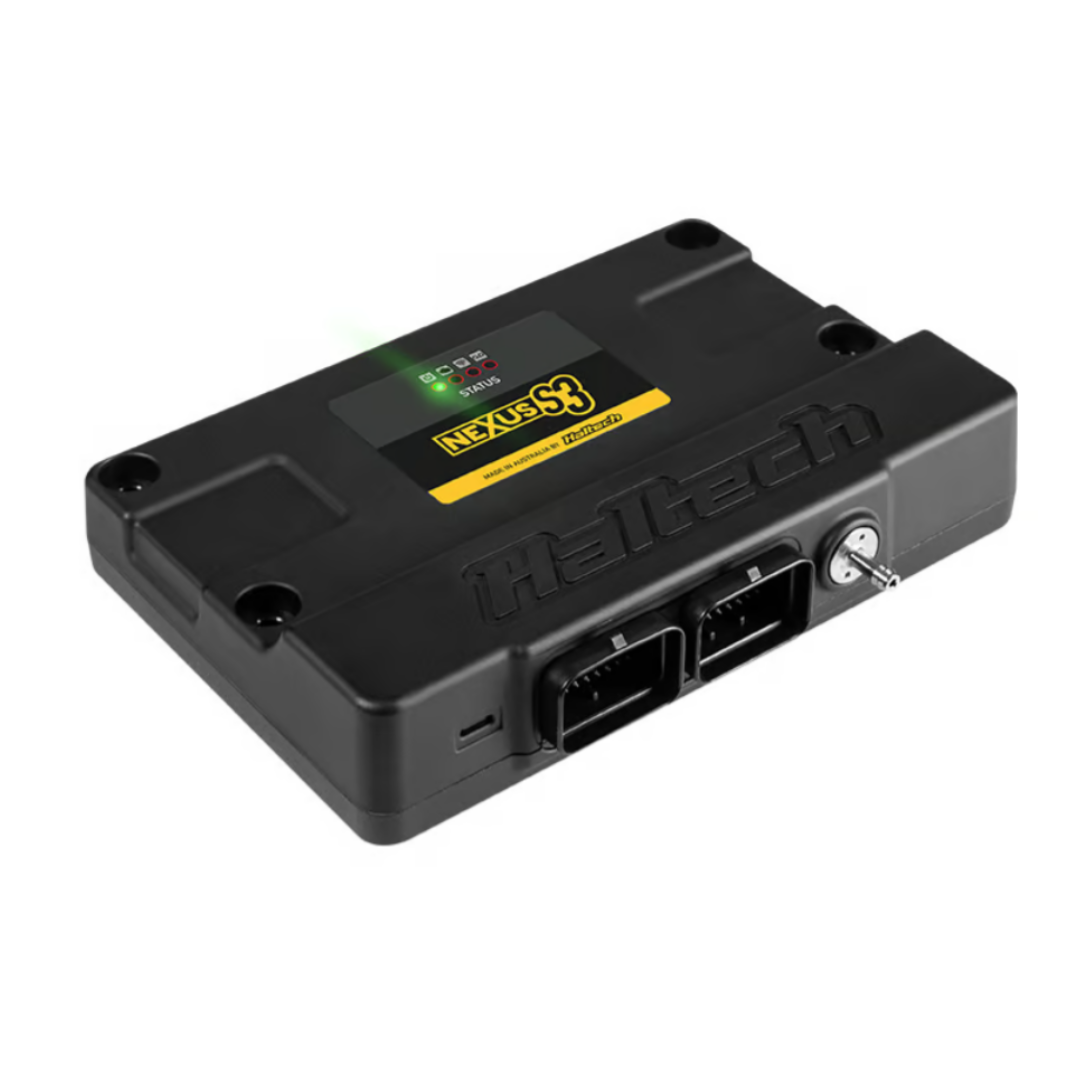

Haltech Nexus S3 - ECU only

HT-213000
Suits: Engines with up to 8 cylinders or up to 4 rotors. Racing applications where advanced race features and data logging is required.
Includes: Nexus S3 ECU, 4 x mounting bolts, USB-C Cable, USB-C dust cap, Quick Start Guide, Wiring Diagram.
ECU OVERVIEW: Haltech's Nexus S3 is the successor to the acclaimed Elite 2500, offering a serious upgrade in performance and functionality. The S3 combines all the classic functionality of the Elite 2500 with new features and the superior processing power of the successful Nexus platform.
8 x peak/hold injector drivers (can be used as low side drive outputs)
8 x low current ignition outputs (can be used as low side drive outputs)
6 x low side drive outputs, PWM capable (DPOs)
4 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle
11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
6 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
1 x on-board wideband controller, supporting NTK and LSU4.9
1 x on-board 4 bar MAP sensor
2 x CAN ports with switchable termination
